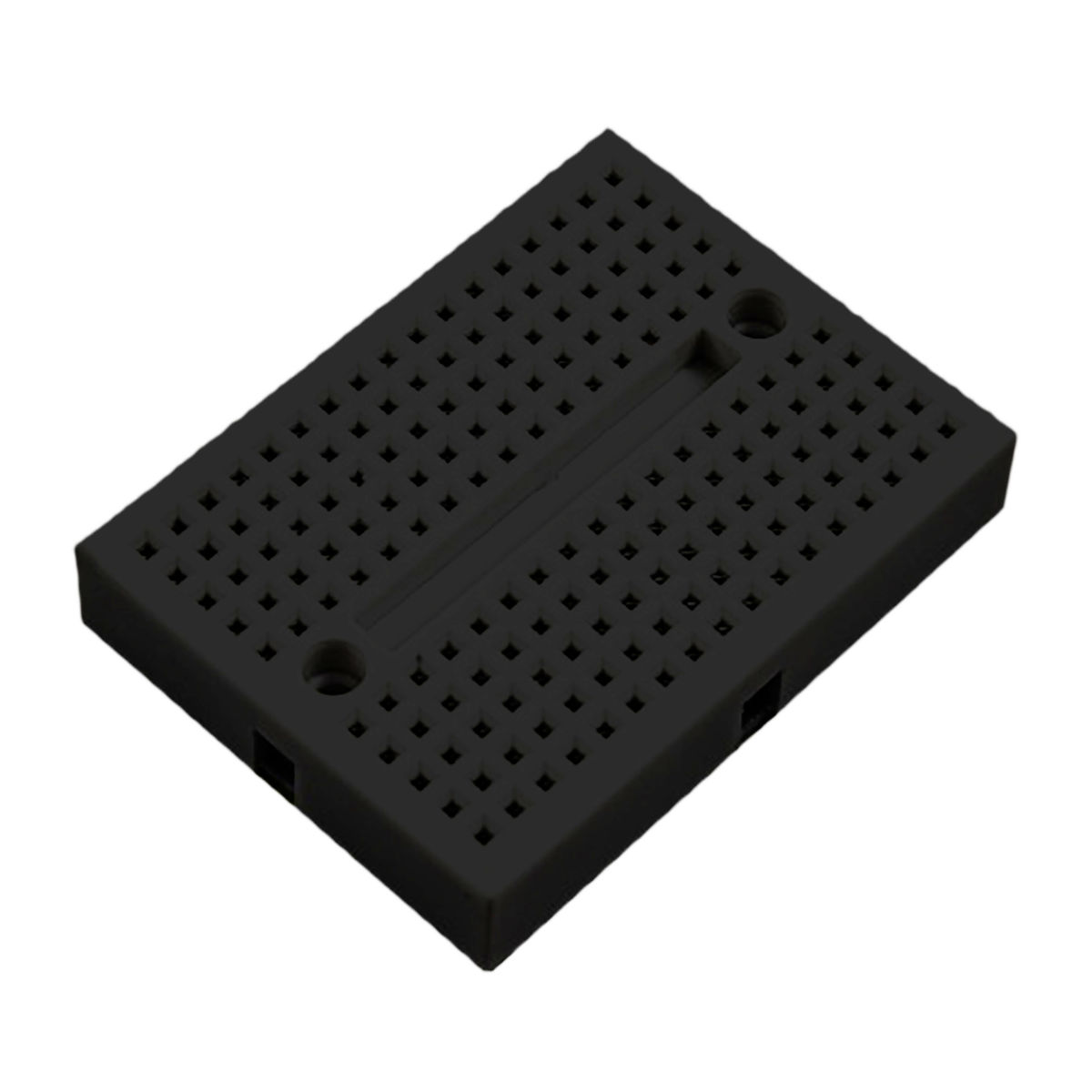

Black 170 point mini Breadboard
170 Insertion Points
No soldering required
Simply push components and connectors into the board.
Ideal for quickly testing and building mini electronic projects
Accommodates up to two 14 or 16 pin DIP ICs
Self adhesive backing with additional screw holes for fixing if required
Height: 9 mm Width: 47 mm Depth: 35 mm
£1.89
109 in stock
Black 170 point mini Breadboard
170 Insertion Points
No soldering required
Simply push components and connectors into the board.
Ideal for quickly testing and building mini electronic projects
Accommodates up to two 14 or 16 pin DIP ICs
Self adhesive backing with additional screw holes for fixing if required
Height: 9 mm Width: 47 mm Depth: 35 mm
| Weight | 3 kg |
|---|
This solderless breadboard has 170 holes which are arranged into 34 rows of 5 common connection points (these are often known as nodes), 17 rows (nodes) on the top and bottom of each board Enough for up to two 14- or 16-pin DIP ICs.
Components are simply pushed into the board and connections are made by connecting wire or another component into an adjacent hole on it’s respective row. The holes are sized to accommodate wire up to 20 AWG
The board features a self adhesive backing with additional screw mounting holes. Our breadboards have fixing tabs which allow multiple boards to easily be connected together.
This breadboard is black which can easily identify a particular circuit as well as adding a splash of colour to your project; other colors are also available.
These breadboards are used extensively in our beginners electronic projects.
